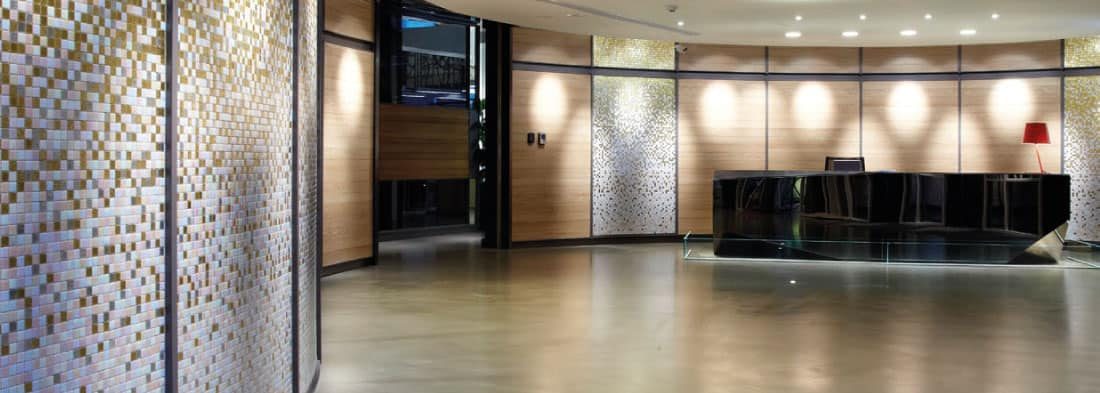

• Office reception with polished concrete floor

PANDOMO® Technical Data

Technical data PANDOMO® Floor/FloorPlus

The basis of PANDOMO® Floor is the cement-based design levelling compound PANDOMO® K1. The levelling compound can be easily coloured using PANDOMO® colour concentrates to achieve any desired shade. With PANDOMO® FloorPlus, the special PANDOMO® HG Hardgrain sand is incorporated into the freshly levelled floor during laying. This creates a tougher, more durable surface and constitutes the “Plus” in PANDOMO® Floor design. After the PANDOMO® Floor surface is treated with PANDOMO® Stone oil, the surface has a silky shimmer and is also resistant to abrasion and water. This style of concrete floor construction is resistant to fading and suitable for underfloor heating and chair castors.

TestStandardTimeResult
Layer thickness5-10mm
Walkability (+20°C)after 3 hours
Compressive strength (approx.)EN 196, part1after 1 day
after 7 days
after 28 days
13,0N/mm2
20N/mm2
30N/mm2
Tensile bending strength (approx.)EN 196, part1after 1 day
after 7 days
after 28 days
3,0N/mm2
5,0N/mm2
8,5N/mm2
Ball impression hardness (approx.)EN 1168, part2after 1 day
after 7 days
after 28 days
45,0N/mm2
65,0N/mm2
85,0N/mm2
Suitable for chair castorsyes
Suitable for underfloor heatingwater-bearing: yes
electrical: no
Anti-slip propertiesDIN 51131Floor: R10
FloorPlus: R11

For more in depth information on PANDOMO® flooring, please contact a member of our technical department on 020 8462 4050 or fill out our contact form.


Technical data PANDOMO® Loft

Before applying PANDOMO® K2 Creative thin layer floor covering compound, the substrate must be properly primed and sand blinded with PANDOMO® HG Hardgrain sand. After substrate preparation, the individually coloured Loft flooring compound PANDOMO® K2 is applied in a scratch coat to give it its unique signature. A more understated, even appearance can be obtained by simply applying a second coat onto the still moist PANDOMO® Loft floor. Subsequently the area is impregnated with PANDOMO® SP-SL Stone oil. PANDOMO® Loft offers countless possibilities for exceptional room design and is a state-of-the-art alternative to tiles and parquet – distinctive, individual, timeless.

TestStandardTimeResult
Layer thickness2-4mm
Walkability (+20°C)after 2 hours
Compressive strength (approx.)EN 196, part1after 1 day
after 7 days
after 28 days
16N/mm2
23N/mm2
32N/mm2
Tensile bending strength (approx.)EN 196, part1after 1 day
after 7 days
after 28 days
4N/mm2
6N/mm2
10N/mm2
Ball impression hardness (approx.)EN 1168, part2after 1 day
after 7 days
after 28 days
40N/mm2
55N/mm2
70N/mm2
Suitable for chair castorsyes
Suitable for underfloor heatingwater-bearing: yes
electrical: no
Anti-slip propertiesDIN 51131R10

For more in-depth information on PANDOMO® Loft, please contact a member of our technical department on 020 8462 4050 or fill out our contact form.


Technical data PANDOMO® Wall

The centrepiece of individual surface design with PANDOMO® Wall, PANDOMO® W1 is a white cement-based decorative finishing render that can be easily coloured using PANDOMO® colour concentrates to achieve any desired shade. And the options don’t end there: You can add texture, create patterns of different colours that adjoin seamlessly. You can even integrate elements made of other materials effortlessly. After treatment with stone oil, surfaces are vapour permeable, free of any oily film and soil resistant.

TestTime / StandardResult
Layer thickness1-20mm
Follow-up treatment (+20°C)after 1 hour
Compressive strengthafter 1 day
after 7 days
after 28 days
approx. 4,5N/mm2
approx. 8,0N/mm2
approx. 13,0N/mm2
Tensile bending strengthafter 1 day
after 7 days
after 28 days
approx. 1,5N/mm2
approx. 3,0N/mm2
approx. 5,0N/mm2
Water vapour diffusion coefficient µDIN 53122 (complete system)approx. 210

For more in-depth information on PANDOMO® walls, please contact a member of our technical department on 020 8462 4050 or fill out our contact form.
